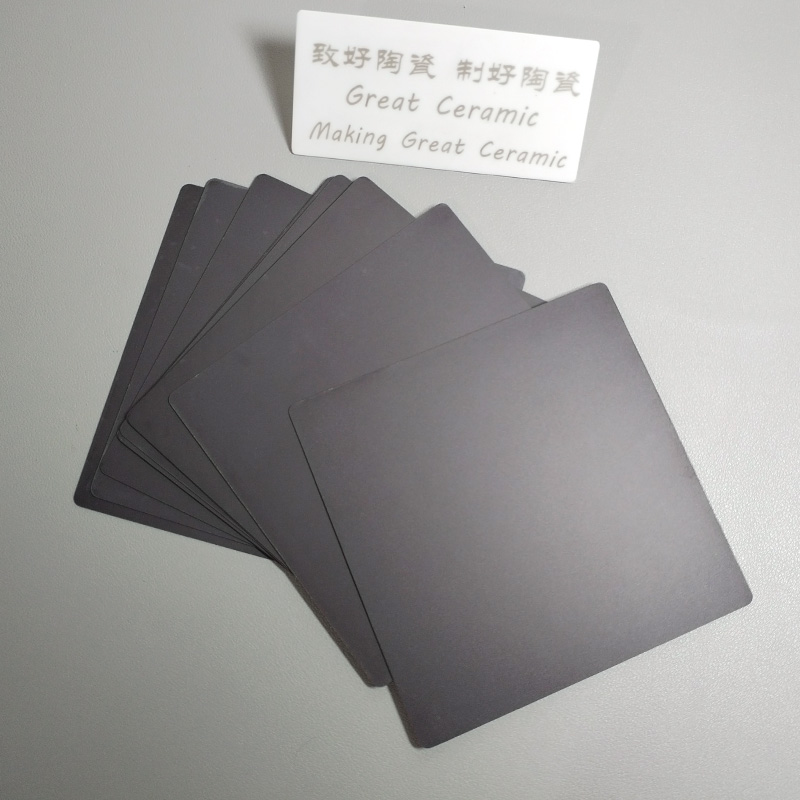

An alumina substrate, also known as an aluminum oxide ceramic substrate, is an electronic base material made from high-purity aluminum oxide through high-temperature sintering. Its excellent thermal conductivity, electrical insulation, and mechanical strength make it widely used in power electronic devices, LED modules, sensors, and RF components.

Common alumina ceramic substrates come in different purity levels, such as 95%, 96%, and 99%. The purity of the alumina substrate affects its thermal conductivity, electrical insulation, and price. For procurement professionals, understanding these technical specifications helps select the most cost-effective substrate material for specific applications.

When choosing an alumina substrate, it is essential to understand its physical and electrical properties:

Alumina substrates typically have thermal conductivity between 20–30 W/m·K (for 99% alumina), effectively dissipating heat generated by electronic components and preventing overheating in high-power devices. Compared to conventional PCBs, their thermal performance is significantly better, which is a key advantage of alumina substrate PCB in power modules.

Alumina substrates provide high dielectric strength and insulation resistance. Their dielectric constant usually ranges from 9.8 to 10.5 (depending on purity and thickness). This ensures stable signal transmission and safety in high-frequency applications, making them indispensable in RF circuits, LED packaging, and microelectronics.

The flexural strength of alumina ceramic substrate can reach 300–400 MPa, making it highly resistant to cracking. Compared to glass or standard PCBs, it can withstand harsh mechanical conditions, providing long-term reliability for electronic products.

Alumina substrates exhibit excellent corrosion and oxidation resistance, performing reliably in humid, acidic, or alkaline environments. This makes them ideal for applications in renewable energy, industrial automation, and high-temperature environments.

When sourcing or designing electronic products, reviewing the alumina substrate datasheet is essential. Common specifications include:

Procurement professionals can choose different purity levels and thicknesses based on the application. For example, high-power LED modules require 99% alumina for optimal heat dissipation, while low-power devices may use 95–96% alumina to reduce costs.

In power semiconductor modules and IGBT modules, alumina substrate PCB is used as the base plate, providing efficient heat dissipation and improving component lifespan and performance.

LED substrates require high thermal conductivity and electrical insulation. Alumina ceramic substrates meet the thermal management needs of high-power LEDs, preventing light decay and thermal failure.

High-frequency signals demand stable dielectric properties. Alumina substrate’s consistent dielectric constant ensures low-loss signal transmission, ideal for RFID, antennas, and microwave components.

Gas sensors, temperature sensors, and MEMS devices require chemically stable and mechanically strong substrates. Alumina substrate provides an ideal platform for reliable sensor performance.

Inverters, photovoltaic components, and electric vehicle power electronics require high-performance heat dissipation substrates. Alumina substrate provides long-term reliability with excellent thermal management and insulation.

Compared with standard PCB materials, alumina substrate offers superior thermal conductivity and mechanical performance at a moderate cost, suitable for most high-power and high-reliability applications.

Procurement professionals and engineers often require customized solutions when sourcing alumina substrates:

• Size and Thickness: Supports 0.3mm–3.0mm thickness, customizable to design requirements

• Metallization: Compatible with thick-film printing or thin-film deposition for various device packaging

• Mechanical Processing: Laser cutting, drilling, and grooving with high precision

• Rapid Prototyping and Mass Production: Supports small-batch prototyping and large-scale supply

These capabilities ensure alumina ceramic substrates can meet complex PCB designs and industrial manufacturing requirements.

Shenzhen Great Ceramics Co., Ltd. is a reliable supplier of alumina substrates, ensuring stable product quality and comprehensive technical support:

• High Yield and Consistent Quality: Ensures uniformity in every batch

• Technical Support: Material selection advice, PCB design guidance, and thermal analysis

• Fast Delivery: Flexible supply chain to meet urgent production needs

• Certifications: MSDS, RoHS, REACH compliance

• Transparent Pricing: Competitive alumina substrate price based on specifications and order volume

These advantages help procurement professionals optimize cost while ensuring product performance and reliability.

Alumina substrate offers exceptional thermal conductivity, electrical insulation, mechanical strength, and chemical stability, making it indispensable in high-performance electronics, LEDs, RF circuits, and power electronics. By reviewing the alumina substrate datasheet and leveraging customization options, buyers and engineers can select the most reliable base material for their products.

High-quality alumina ceramic substrates not only enhance device performance but also ensure production efficiency and long-term reliability. For electronic products requiring high reliability, efficient heat dissipation, and stable cost, alumina substrate is the ideal choice.

Contact your supplier today to obtain detailed alumina substrate price and technical support, and develop high-performance substrate solutions for your electronic products.
